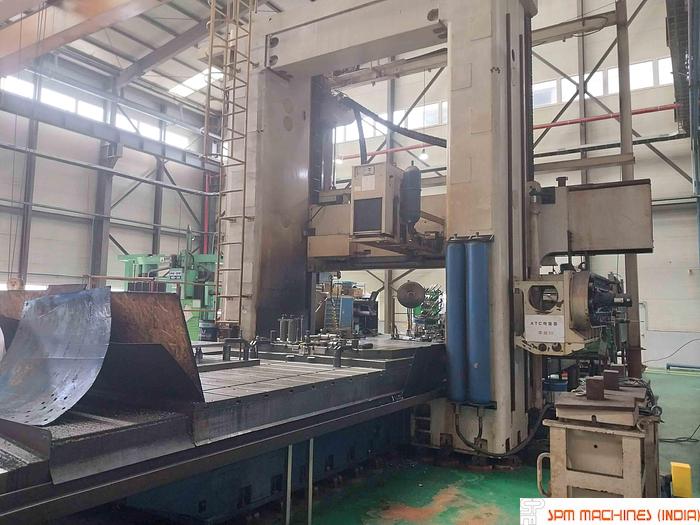

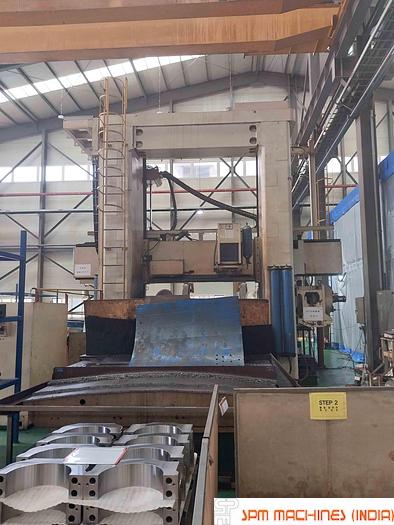

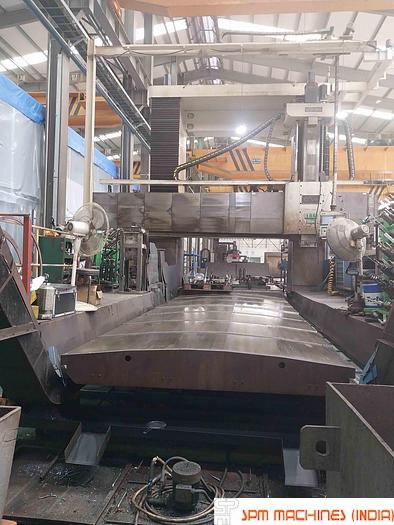

SM Double Column 6m x 3.8m, Year : 2011, Extra Height : 3000mm, Fanuc 18iMB, 4 Milling Heads
orCall +919819828828
![Used SM Double Column 5m x 3m, Year : 2011, Extra Height : 3000mm, Fanuc 18iMB, 4 Milling Heads](https://i.machineryhost.com/6d70cb65d15211726dcce4c0e971e21c/77f08ce6c87a655d477f1c74fcaf785f/large-watermarked-used-sm-double-column-5m-x-3m-year-2011-extra-height-3000mm-fanuc-18i-mb-4-milling-.jpg)
Specifications
Manufacturer | SM - South Korean |
Model | SJM-300 |
Year | 2011 |
Table Size | 5000mm x 2500mm |
Between Column | 3000mm |
X Axis | 6000mm |
Y Axis | 3800mm |
Z Axis | 1100mm |
W Axis | 2000mm |
Door Height | 3000mm |

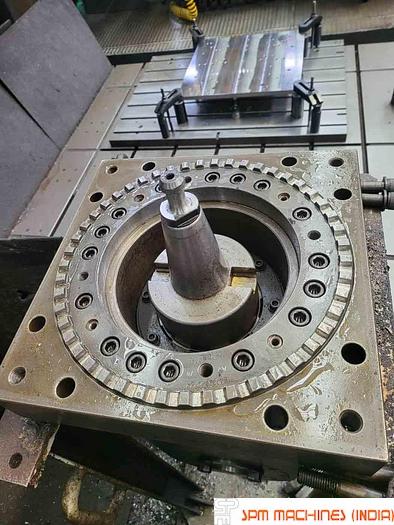

Taper | BT50 |

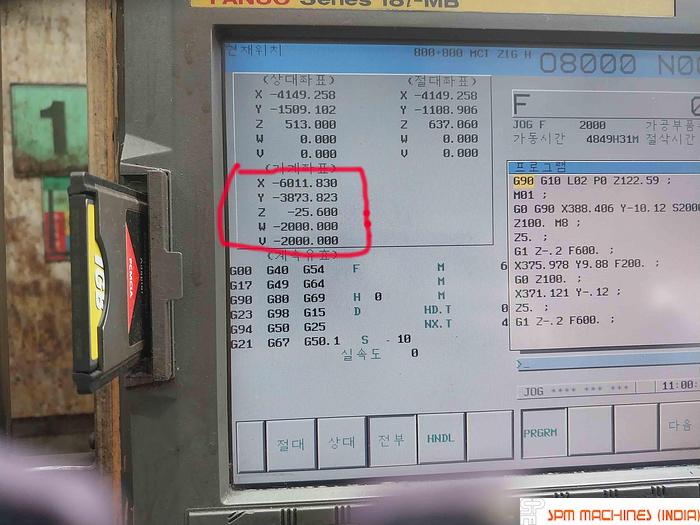

Controller | Fanuc 18iMB |

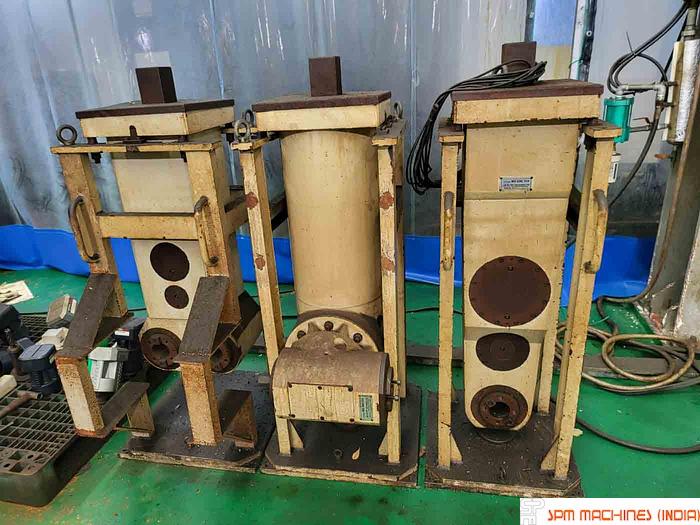

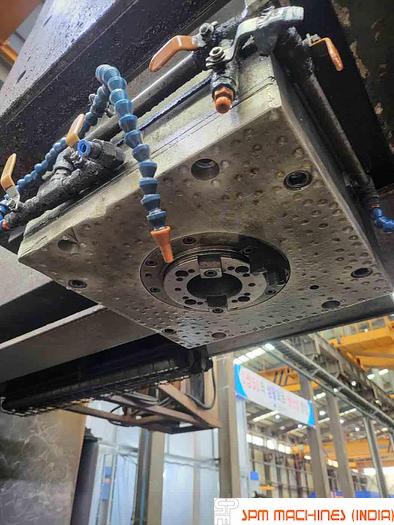

Milling Head | 4 |
Chip Conveyor | Yes |

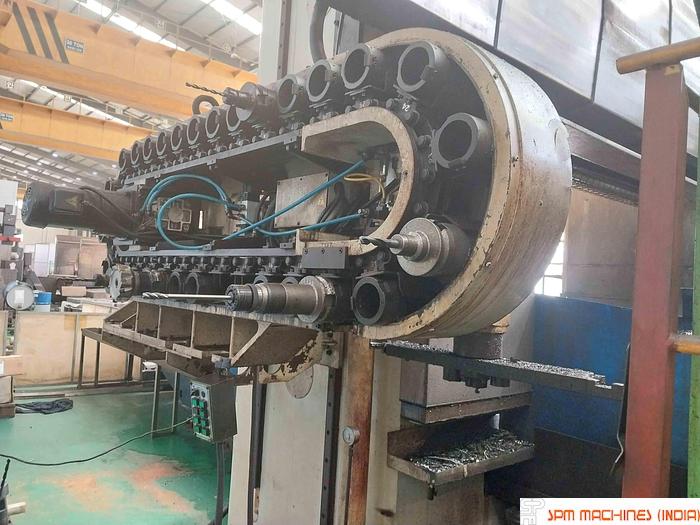

ATC | 30 |
Machine Weight | 82 Tons |
Description
With :
Extra Height : 3000mm (Original) X - LM Guideways Y, Z Axis Heavy Duty Box Guideways
3 Milling Heads ATC Chip Conveyor Running videos on request
