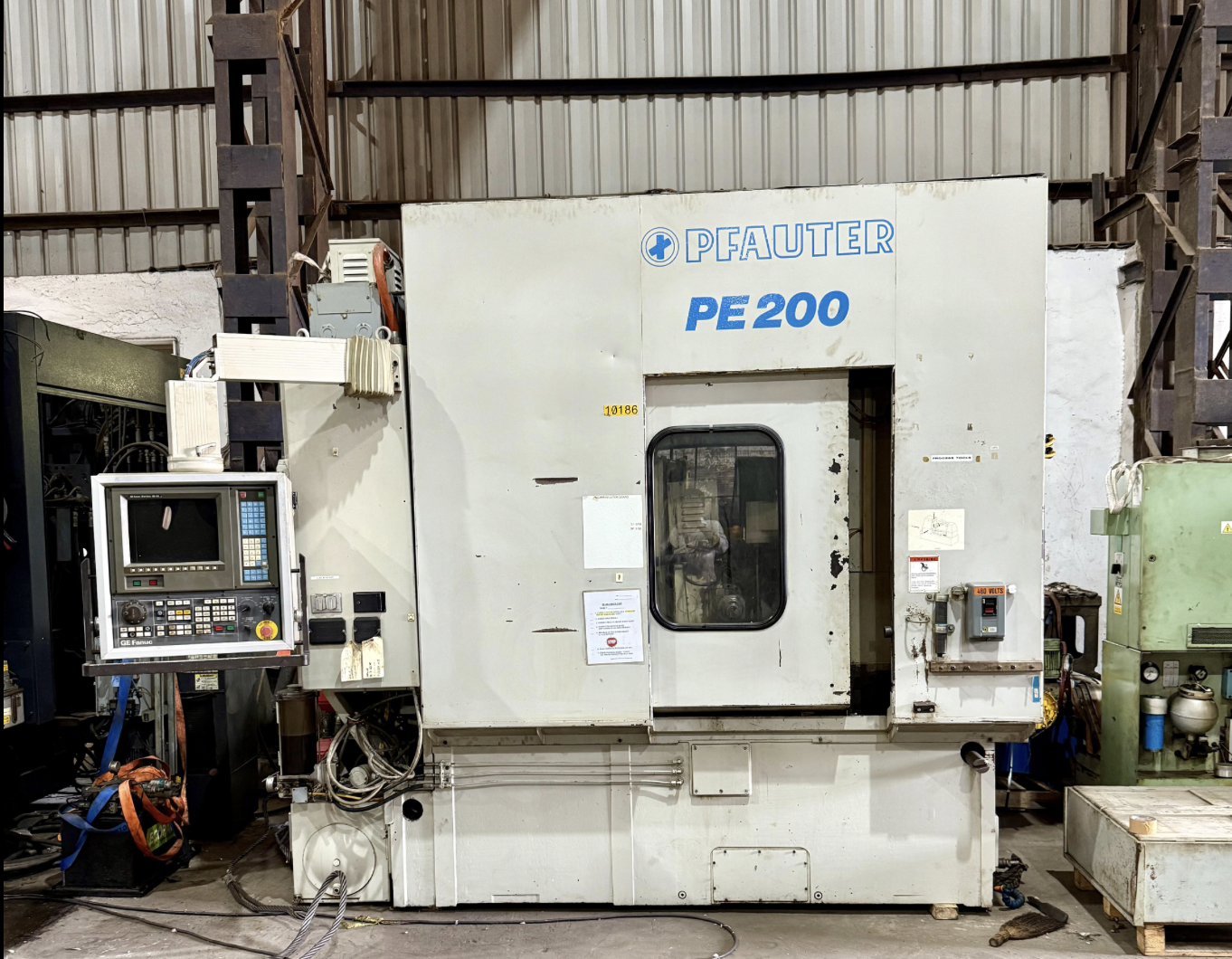

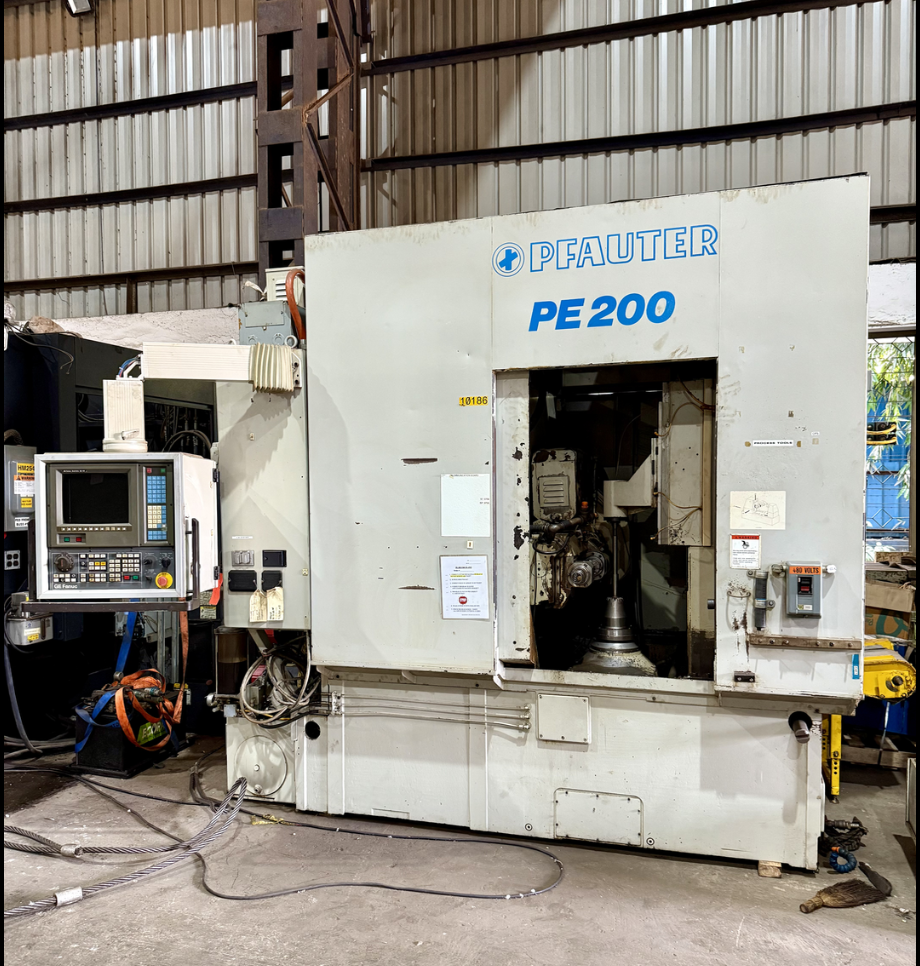

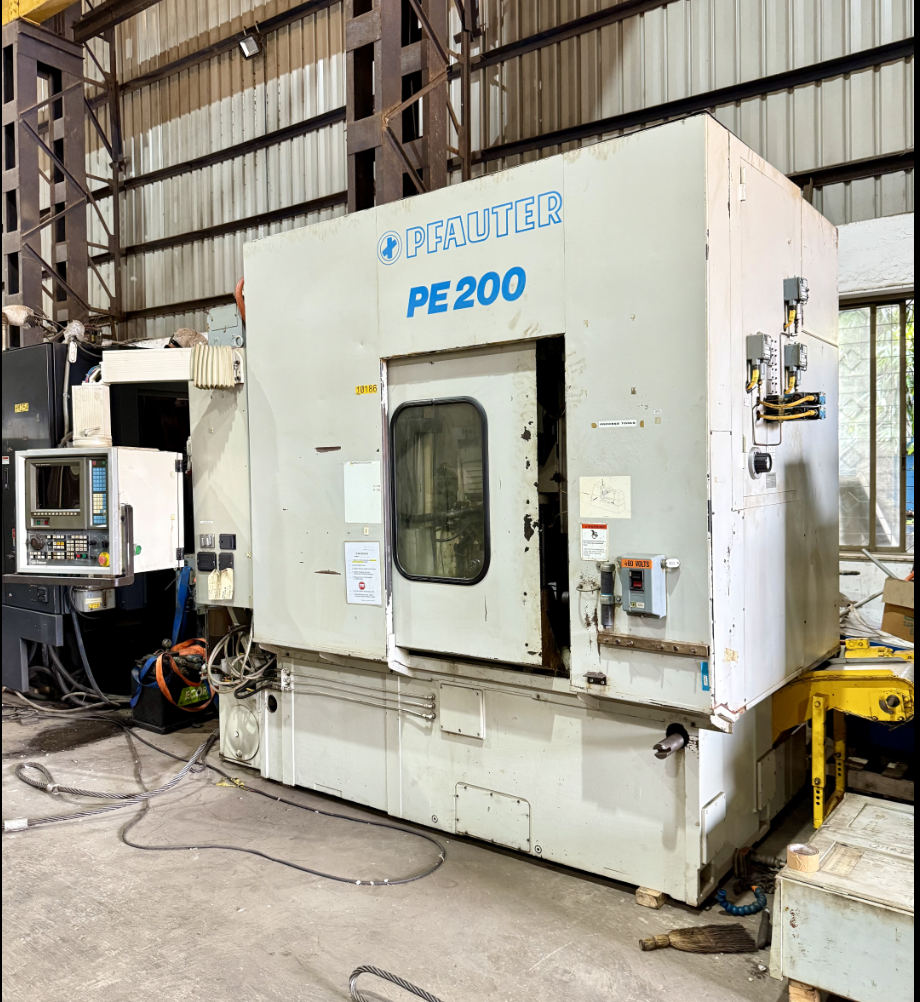

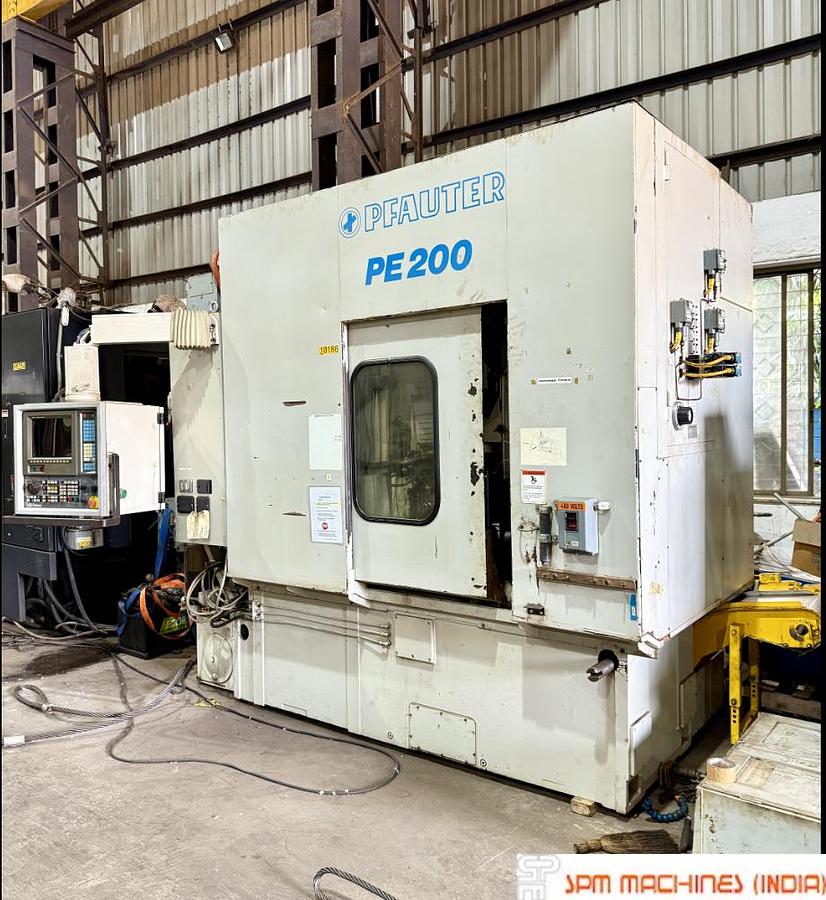

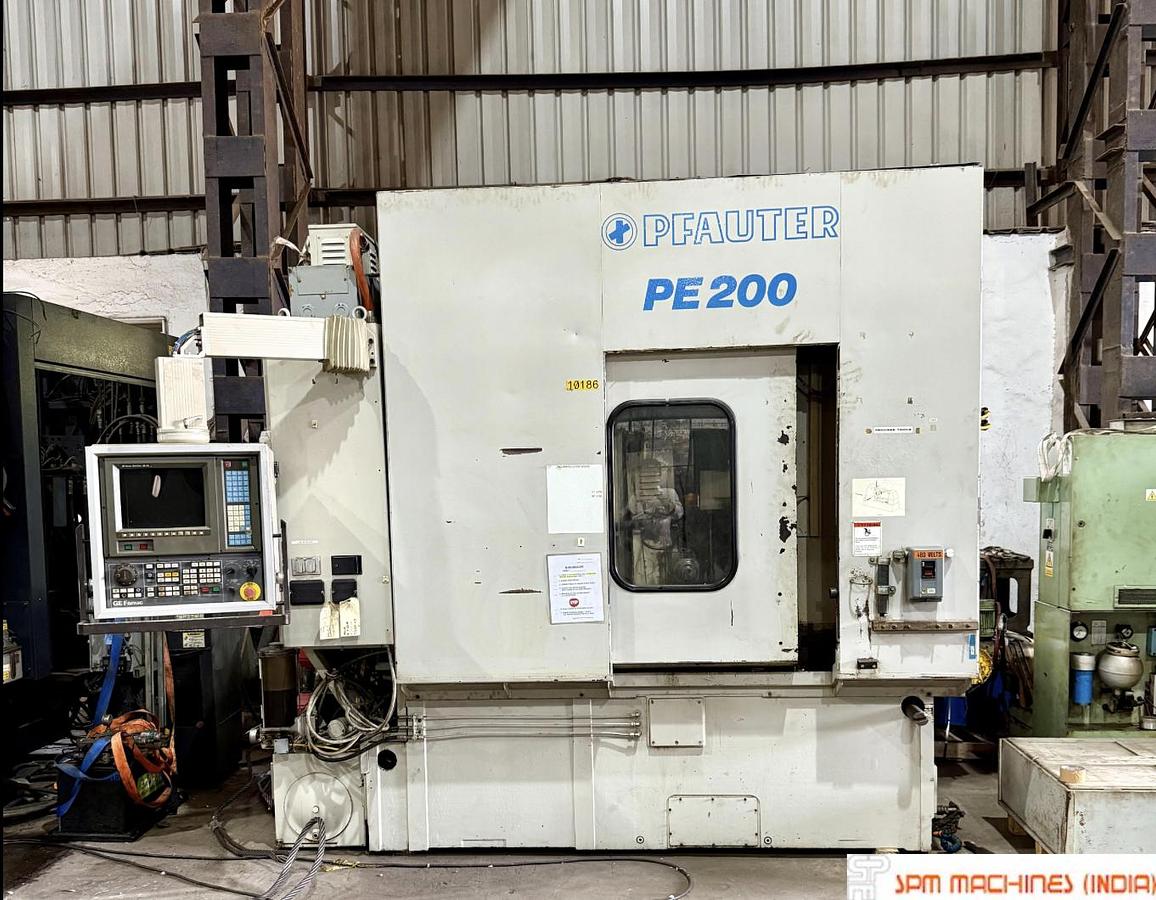

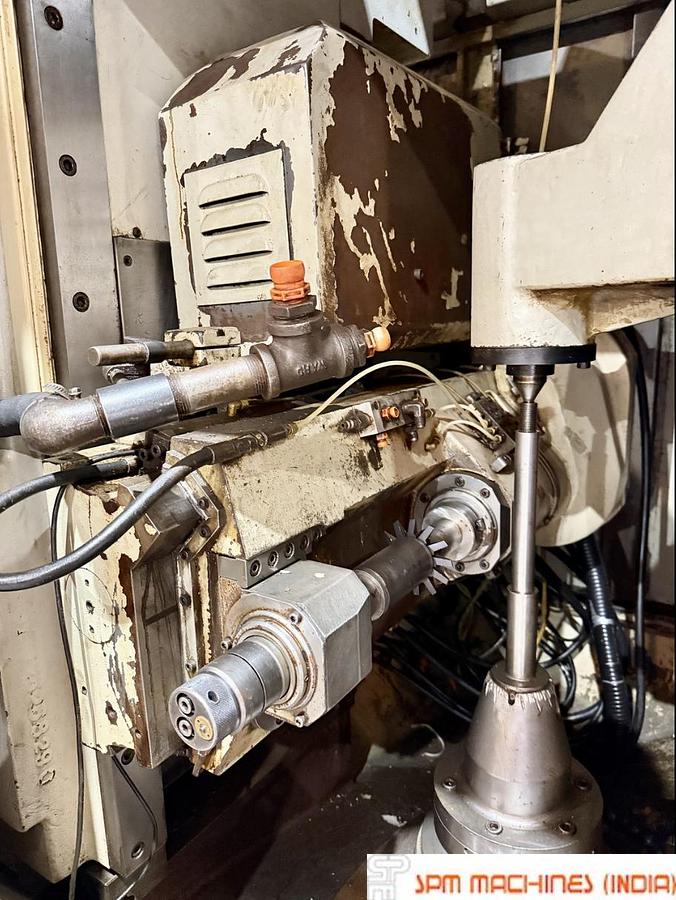

Gleason Pfauter PE200 CNC Gear Hobbing, 6 Axis, Diameter:200mm Year : 1995, Fanuc 15M Controller
or
Call +919559535567
Specifications
| Manufacturer | Gleason Pfauter |
| Model | PE200 |
| Year | 1995 |
| Stock Number | 750 |
| Diameter | 200mm |
| Module | 6mm |
| Axis | 6 |
| Controller | Fanuc |
Description
More Specification:
Max Dia. Gear: 200 mm
Max Diametral Pitch: 6
Horizontal/Vertical: Vertical
Dimensions: 12′ x 6′ x 10′
Weight: 18,000 Lbs.
Control: CNC (Fanuc)

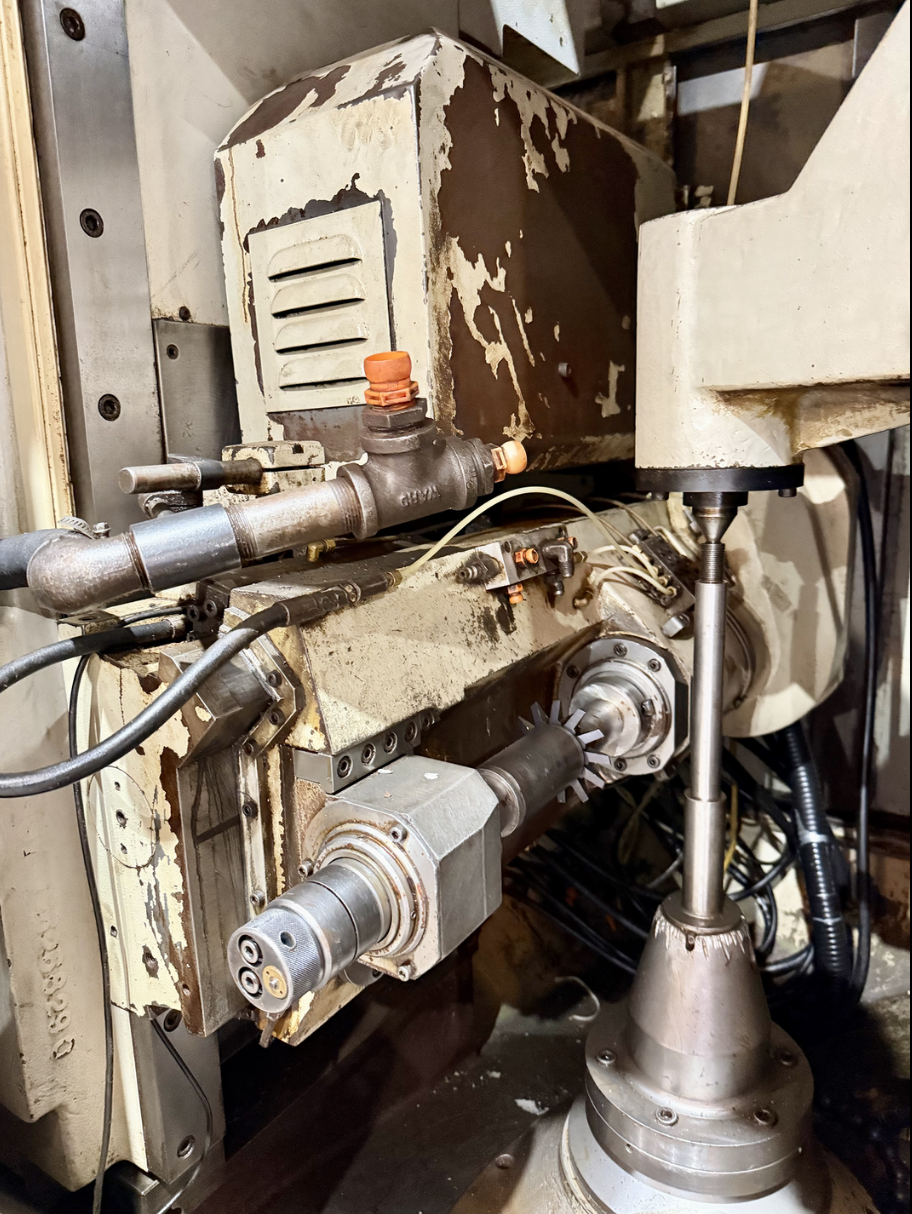

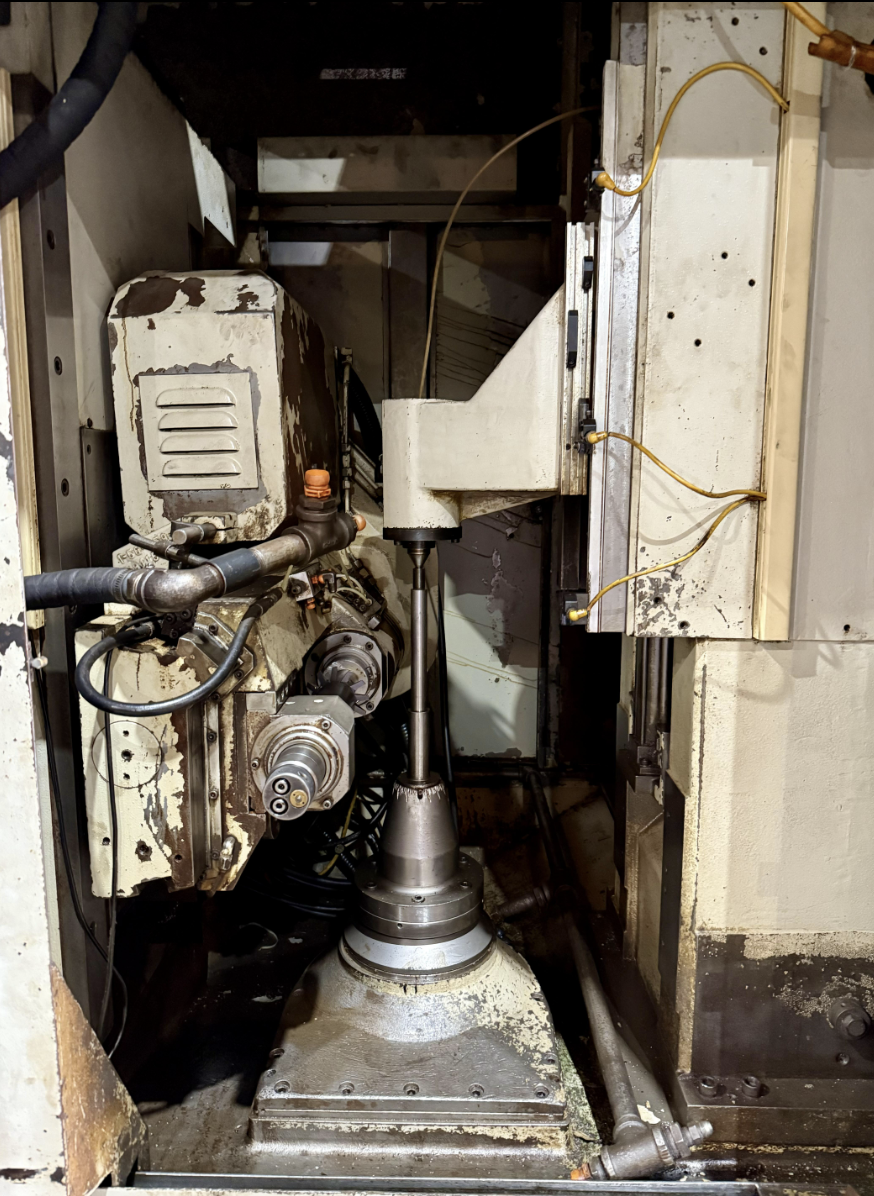

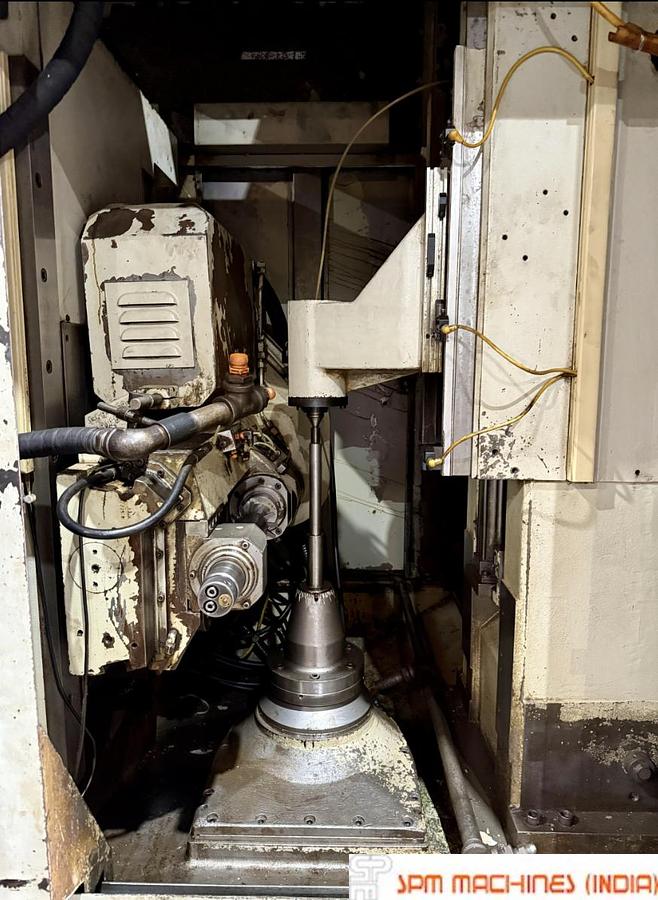

Max. Hob Diameter: 130 MM (5.1″)
Max. Hob Length: 220 MM (8.7″)
Max. Hob Shift Travel: 170 MM (6.7″)
Max. Swivel Of Hob Head:
Left: -30 Degrees
Right: 90 Degrees
Taper In Hob Spindle: ISO 40
Hob Spindle Speed Range: 150- 600 RPM
Table Diameter: 6.3″
Max. Work Table Rotation: 80 RPM
Max. Wheel Diameter: 200 MM (7.88″)
Pitch Rating: 6 DP- 4 MOD
Max. Pitch Diameter: 200 MM (7.88″)
Max. Face Travel: 200 MM (7.88″)
Max. Length Of Part: 870 MM (34.25″)
Dimensions (L x W x H): 12′ x 6′ x 10′
Weight: 18,000 Lbs.
